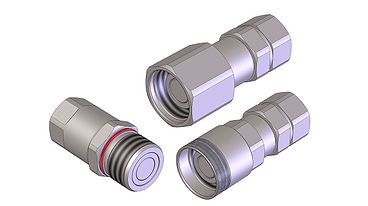

PVT4 Series

Interchange: exclusive Dnp profile

Occlusion: flat face

Locking: screw

Material: steel

Finishing: Zn-Fe (Cr III) and Zn-Ni

Threads: BSP - NPT - SAE - METRIC

Standard seals: NBR and PU

Working temperature: -25 °C +100 °C

Optional seals: FKM, EPDM or more

Working pressure: 300-450 bar

Connection under pressure: allowed (both male or female side)

Max residual pressure: 300 bar
